How Fiber Optic Cables Work
How fiber optic cables work is one of the most fascinating aspects of modern telecommunications technology. These thin strands of glass or plastic transmit data at the speed of light, revolutionizing how we connect to the internet and communicate globally. Understanding the science behind fiber optic technology reveals why it has become the backbone of our digital world and why it’s rapidly replacing traditional copper wiring in homes and businesses worldwide.
What Are Fiber Optic Cables?
Fiber optic cables are sophisticated data transmission systems that use light pulses to carry information over long distances. Unlike traditional copper cables that use electrical signals, fiber optics harness the power of photons—particles of light—to transmit data with unprecedented speed and reliability.
The core principle behind fiber optic technology dates back to the 1960s, but modern implementations have transformed these cables into the most efficient method of data transmission available today. According to the Fiber Broadband Association, fiber networks can deliver speeds up to 1000 times faster than traditional broadband connections.

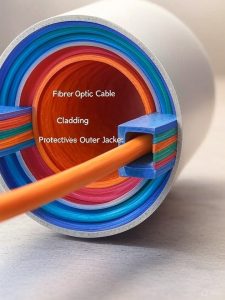

The Basic Components of Fiber Optic Cables
1. The Core
The core is the innermost part of the fiber optic cable, typically made of ultra-pure glass or plastic. This thin strand, measuring between 8 to 62.5 micrometers in diameter (thinner than a human hair), is where the light travels. The core’s material composition is crucial for maintaining signal integrity over long distances.
2. The Cladding
Surrounding the core is the cladding, a layer of glass or plastic with a lower refractive index than the core. This design difference is essential for the total internal reflection process that keeps light signals contained within the core during transmission.
3. Protective Buffer
Multiple protective layers surround the core and cladding, including a buffer coating that shields the delicate glass from moisture and physical damage. These layers ensure the cable’s durability in various environmental conditions.
The Science: How Light Travels Through Fiber Optics
Total Internal Reflection
The fundamental principle behind how fiber optic cables work is total internal reflection. When light travels from a denser medium (the core) to a less dense medium (the cladding), it reflects back into the core if it hits the boundary at an angle greater than the critical angle. This phenomenon allows light signals to bounce along the fiber’s length without escaping.
Light Sources and Detection
Fiber optic systems use two primary light sources:
- Light Emitting Diodes (LEDs): Cost-effective for shorter distances
- Laser Diodes: More precise and powerful for long-distance transmission
At the receiving end, photodiodes convert the light signals back into electrical signals that devices can process. This conversion happens billions of times per second, enabling the high-speed data transmission fiber optics are famous for.
Types of Fiber Optic Cables
Single-Mode Fiber (SMF)
Single-mode fibers have a smaller core diameter (typically 9 micrometers) and allow only one mode of light to propagate. This design minimizes signal dispersion and enables:
- Longer transmission distances (up to 100+ kilometers)
- Higher bandwidth capacity
- Greater signal clarity
Single-mode fiber is ideal for long-distance telecommunications and internet backbone infrastructure.
Multi-Mode Fiber (MMF)
Multi-mode fibers have a larger core (50 or 62.5 micrometers) that allows multiple light modes to travel simultaneously. While they have shorter transmission distances, they offer:
- Lower cost installation
- Easier connection procedures
- Adequate performance for local networks
The Data Transmission Process
Step 1: Signal Encoding
Digital data from your device gets converted into electrical signals, then transformed into light pulses by a transmitter. Each pulse represents binary data—light on for “1” and light off (or dimmed) for “0”.
Step 2: Light Transmission
The encoded light signals travel through the fiber optic cable using total internal reflection. Modern systems can transmit multiple wavelengths simultaneously through a process called Wavelength Division Multiplexing (WDM), dramatically increasing capacity.
Step 3: Signal Reception
At the destination, photodetectors convert the light signals back into electrical signals. Signal amplifiers and repeaters boost the signal strength when necessary for long-distance transmission.
Step 4: Data Reconstruction
Finally, the electrical signals are processed and converted back into the original digital data format that your devices can understand and use.
Advantages of Fiber Optic Technology
Speed and Bandwidth
Fiber optic cables can theoretically support unlimited bandwidth. Current commercial systems offer:
- Download speeds up to 10 Gbps for residential users
- Enterprise solutions exceeding 100 Gbps
- Laboratory demonstrations reaching terabit speeds
The International Telecommunication Union reports that fiber networks continue to set new speed records annually.
Low Signal Loss
Unlike copper cables that suffer from significant signal degradation over distance, fiber optic cables maintain signal integrity over much longer distances. Signal loss in modern fiber is less than 0.2 dB per kilometer.
Immunity to Interference
Fiber optic cables are immune to electromagnetic interference (EMI), radio frequency interference (RFI), and crosstalk between cables. This immunity ensures consistent performance in electrically noisy environments.
Security
Intercepting fiber optic signals requires physical access to the cable, making fiber networks inherently more secure than wireless or copper-based systems.
Real-World Applications
Internet Infrastructure
Major internet service providers rely on fiber optic cables for their backbone networks. Companies like Verizon, AT&T, and Google Fiber use fiber technology to deliver high-speed internet to millions of customers.
Telecommunications
Long-distance telephone calls, mobile network backhaul, and international communications depend on undersea and terrestrial fiber optic cables.
Data Centers
Modern data centers use fiber optics for internal connections between servers, storage systems, and networking equipment to handle massive data processing requirements.
Medical Applications
Fiber optics enable minimally invasive medical procedures through endoscopes and surgical instruments that can transmit clear images from inside the human body.
Installation and Maintenance

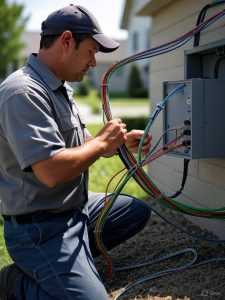

Installation Process
Installing fiber optic cables requires specialized equipment and trained technicians. The process involves:
- Route planning and surveying
- Cable pulling through conduits or aerial installation
- Precision splicing and connector installation
- Testing and certification
Maintenance Considerations
While fiber optic cables are highly durable, they require:
- Protection from physical damage
- Regular testing and monitoring
- Professional repair when damaged
- Proper cleaning of connectors
Future of Fiber Optic Technology
Emerging Technologies
Research continues to push the boundaries of fiber optic capabilities:
- Space Division Multiplexing: Using multiple cores within a single fiber
- Advanced Modulation Formats: Increasing
